Delta WASP 2040 Industrial 4.0 (110v)
The ultra-speedy Delta WASP Turbo 2 has been added to the new Industrial 4.0 line and now boasts several enhancements to the user experience, a heated build chamber, as well as optional changeable single, dual and flex extruders. The Delta WASP 2040 Industrial 4.0 now makes high-speed 3D printing easier than ever.
$6,300.00
Tax excluded
Free lifetime remote support on all products
Ask us about our discounts for education
iMakr Verdict:
The DeltaWasp 2040 Industrial 4.0 includes the features of the machines in the previous industrial line, but with the added benefits of auto-calibration, compatibility with the Zen and Flex extruders and automatic extruder detection, so that the printer knows which extruder is installed. With upgrades to the interface, connectivity and a monitoring camera, it is easy to see that the priority has been to make the user experience as easy and straightforward as possible. The addition of active heating to the build chamber is a particular highlight which can improve part strength and allow a wider choice of printing materials.
Key Features:
- Thermal and acoustic insulation
- Controlled actively heated print chamber - temperature up to 80C
- Compatible with Spitfire, Zen and Flex extruders
- WiFi connectivity
- Camera inside the print chamber
- Touch interface with in-built video tutorials
- Remote diagnostics
- Extruder recognition
- USB pendrive port
- Resurrection System
- Free-Z System
- Door open/closed sensor
| Touchscreen Interface: | |
| The new touchscreen interface allows easy menu navigation and also includes built-in tutorial videos to help you start printing in no time. |

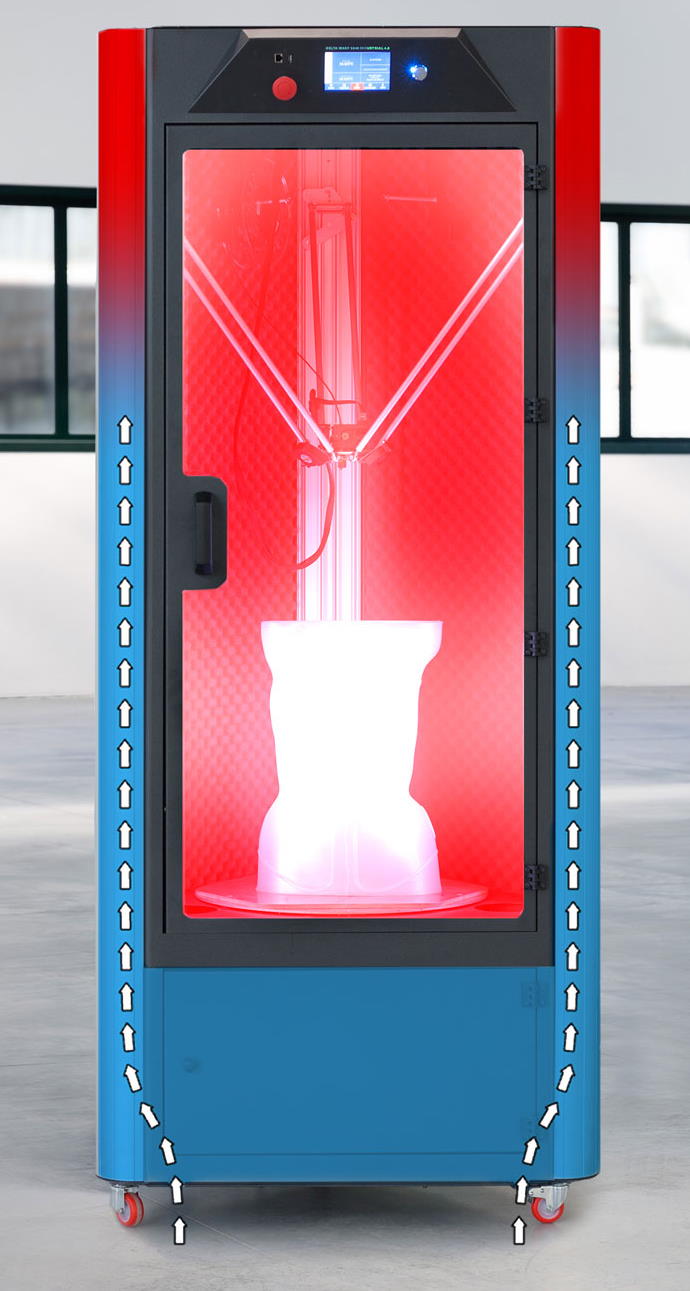

| Active Heated Chamber: | |
| The new Industrial 4.0 Line includes Wasp's "Hot and Cold Technology". Heaters at the top and bottom of the inside of the machine maintain a build chamber temperature of up to 80°C, while cooling fans stop the internal components from overheating. The heated chamber can improve adhesion between the printed part (reduces warping) and prevent de-lamination when printing large parts at higher temperatures. |
| Extruder Options: | |
| Choose which extruder you would like to be installed from factory from the drop-down menu. A Spitfire extruder is also included with the Zen and Flex options. | |
| Red Spitfire: | |
| The DeltaWasp Spitfire extruder is capable of printing a wide variety of materials due to its maximum temperature of 350°C and the optional inter-changeable cartridges. |
| Zen Dual: | |
| The Zen Dual extrusion system allows two filaments of different colour or material to be printed in the same print job. Low temperature and high temperature additional options available, as well as a choice of 0.4mm, 0.7mm and 1.2mm nozzle diameters. |
| Flex: | |
| A direct-drive extruder which is best suited to reliably printing flexible material such as TPE and TPU. Compatible only with 2.85/3mm diameter filament. |
Low temperature 0.4mm diameter Spitfire cartridge included as standard with the Delta Wasp 2040 Industrial 4.0. Print higher temperature filaments with the High Temperature cartridge (available separately). LT and HT cartridges are available with nozzle diameters of 0.4mm, 0.7mm and 1.2mm.
| Low Temperature (LT) Cartridge | PLA, PETG, PMMA, PP |
| High Temperature (HT) Cartridge | ABS, ASA, PA (Nylon), PA-CF (Nylon Carbon Fibre), PC |
*Spitfire extruder is also included when the Zen or Flex extruder versions are selected
Data sheet
- Printing Technology
- FDM
- Build Volume W x D x H (mm) // W x D x H (inch)
- ⌀200 x 400 // 7.9 x 15.8
- Layer Thickness / Print Precision
- 0.05mm
- Nozzle Diameter (mm)
- 0.4mm
- Printing Speed
- 500mm/s Max
- Filament Diameter (mm)
- 1.75mm
- Weight
- 20kg
- Printing Temperature
- Up to 350°C
- Material type
- LT Cartridge: PLA, PETG, PMMA, PP: HT Cartridge installed: ABS, ASA, PA (Nylon), PA-CF (Nylon Carbon Fibre), PC, HIPS
- Platform Levelling
- Auto-calibration
- Dimensions
- 490mm x 440mm x 870mm
- Special Features
- Heated Chamber, Monitoring Camera, Extruder Recognition, Touch Interface
- Heated Platform
- Rectified Aluminium - Up to 120°C
- Heated Chamber
- Active Heating to 80°C
- File Format
- .stl, .obj, .gcode
- Connectivity
- USB Stick, WiFi
- Printer Software
- Cura, Simplify3D
- Software Compatibility
- Windows, Mac, Linux
- Input Voltage / Power
- 110-120v
- Shipping Dimensions
- 650mm x 650mm x 1070mm
- Shipping Weight
- 25kg
