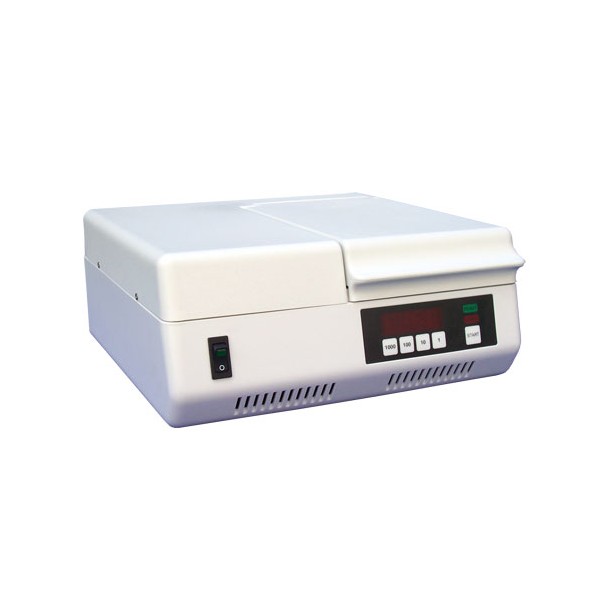

NK-Optik - Otoflash G171-6

Otoflash G171: Flash-curing device

The Otoflash G171 allows a quick curing process. When in operating mode, the two light bulbs placed at the bottom of the polymerisation chamber produces ten flashes per second with a strong light radiation of 280-580 nm. This allows the materials to be cured to a high standard, keep the material properties and reduce the materials residual monomer content (inhibition layer). Choose the Otoflash bundle which includes a protective gas appliance (N2) that prevents any oxygen inhibition curing parts completely with no need to remove or wipe away the inhibition layer. integrated elapsed time meter and adjustable operational voltages (USA: 117 volt/60 Hz and Japan: 100 volt/60Hz).

KEY FEATURES

Digital timer: adjustable from 1 to 9.999 flashes

Flash frequency: 10 flashes per second

Average flash power: 200 watt

Spectral distribution: 280-700 nm, maximum between 400 and 500 nm

Rated frequency: 50/60 Hz

Capacity: 4 BTE-aids or 6 ITE-aids

Dimensions of polymerisation chamber: 120 x 120 x 50 mm

Otoflash G171

Otoflash G171 Protective Gas Appliance

Get the Otoflash G171 with the Protective Gas Appliance as a bundle. The Gas appliance prevents any oxygen inhibition. Surfaces are cured completely with no sticky residue left and no need to remove or wipe away the inhibition layer.
