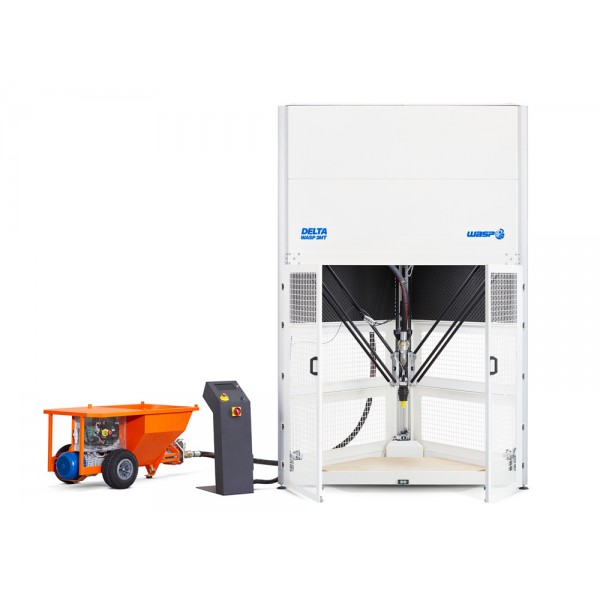

WASP - Delta Wasp 3MT Concrete + LDM WASP Extruder XXL

Technische Daten

Drucktechnologie

Fluid Deposition

Bauraum W x T x H (mm) // W x T x H (inch)

Ø 1000 x h 1000 mm (h max 1000 mm, from the ground)

Düsendurchmesser (mm)

(LDM WASP EXTRUDER XXL) Ø from 8 to 30 mm

Druckgeschwindigkeit

150 mm/s2

Düse

Concrete, Earth based materials Ø from 18 to 30 mm; Clay Ø from 8 to 18 mm

Product Dimensions

215 cm x 235 cm x 305 cm *The machine travels disassembled and it’s assembled in the work space by our technicians only. The required space for assembly is: 5,5 mt x 2,5 mt x h 3,60 mt.

Product Weight

350 kg

Maximum Print Speed

200 mm/s

Maximum Travel Speed

200 mm/s

Shipping Dimensions

Box A: 310 x 60 x 55 cm; Box B: 227 x 60 x 150 cm

Shipping Weight

Box A: 63 kg; Box B: 82 kg
