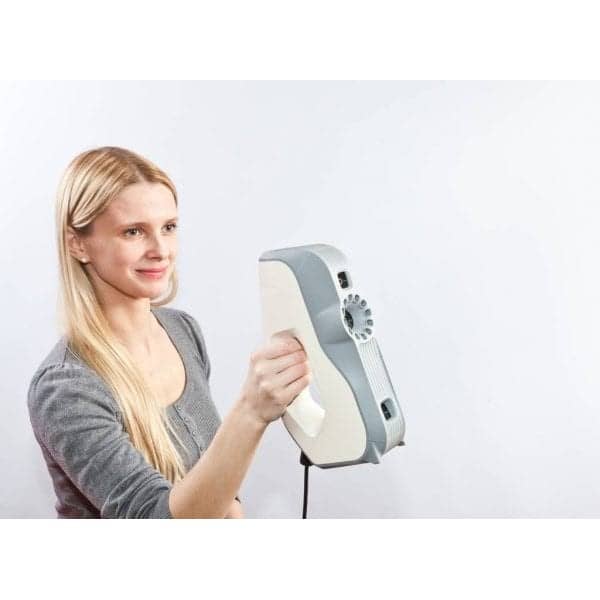

Artec Eva Lite
Eva Lite is the budget version of the bestselling white light Artec Eva 3D scanner. It features the same accuracy specs, but with reduced functionality: Eva Lite has geometry only tracking and capture. As a result, this affordable 3D scanner can be used for making high quality textureless 3D scans when scanning geometrically rich objects, such as the human body.
Free lifetime remote support on all products
Ask us about our discounts for education
Premium Scan Data - Budget Price
The Artec Eva Lite is a slimmed down version of the Artec Eva that does not capture colour or texture. The scanner retains the same high accuracy and scanning speed in a more affordable package. The removal of texture data capture also reduces the amount of data captured reducing the requirements for the connected computer. The Eva Light can be upgraded to the full Eva at a later point in time if required.
Key Features
- Fast : Capturing 2 million data points a second the Artec Eva Lite is capable of scanning large objects quickly.
- Portable : With only two cables and weighing only 850g, the Eva Lite is lightweight and can be moved around freely. The optional battery pack offers full portability.
- High Accuracy : Scan points up to 500 microns apart with an accuracy of up to 100 microns.
In The Box
- Artec Eva Lite 3D Scanner
- Power Supply
- USB Cable
Software Licence sold separately
To book a demonstration or request further information on how Artec 3D scanners can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:
ART00012
Data sheet
- Weight
- 0.85 kg
- Scan size
- 214 x 148 mm (Closest)536 x 371 mm (Furthest)
- Scanning Technology
- Structured light
- Scanning time
- 16 frames per second, 2 million points per second
- Dimensions
- 262 x 158 x 63 mm
- File Output Format
- OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB
- Scan Resolution
- Up to 500 microns
- Scan Accuracy
- Up to 100 microns
- Scanning Software
- Artec Studio
- Power Supply
- 12v, 48w
- Working Distance
- 0.4 - 1 m
- Texture Resolution
- N/A
- Light Source
- Flash Bulb
- Connectivity
- USB
